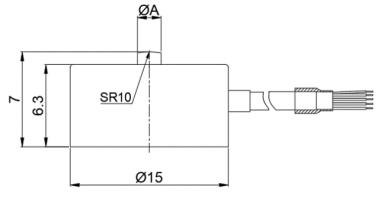

| 量程 | ΦA | H | H1 |
| 5-30kg | 1.5 | 7 | 6.3 |
50-100kg | 3 |
| 量程Capacity | 5-100kg |
| 精度等級Accuracy class | 1.0%F.S. |
| 額定輸出Rated output | 0.8~1.5mV/V |
| 零點輸出Zero balance | ±0.02 mV/V |
| 非線性Non-linearity | ±1%F.S. |
| 滯后Hysteresis | ±1%F.S. |
| 重復性Repeatability | ±1%F.S. |
| 蠕變(30分鐘)Creep(30min) | ±1%F.S. |
| 溫度靈敏度漂移Temp.effect on output | ±1%F.S./10°C |
| 零點溫度漂移Temp.effect on zero | ±1%F.S./10°C |
| 輸入電阻Input impedance | 350±10Ω |
| 輸出電阻Output impedance350 | 350±5Ω |
| 絕緣電阻Insulation | ≥5000MΩ(50VDC) |
| 使用電壓Recommended excitation | 2.5~5VDC |
| 最大使用電壓Maximum excitation | 7VDC |
| 溫度補償范圍Compensated temp. range | -10~40°C |
| 工作溫度范圍Operation temp. range | -20~60°C |
| 安全過載Safe overloadx | 120%F.S. |
| 極限過載Ultimate overload | 150%F.S. |
| 電纜線尺寸Cable size | Φ2x2m |
防護等級Portection class | IP65 |
