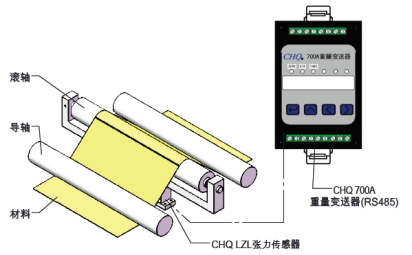

特點與用途
| 量程Capacity | 2-25kg |
| 精度等級Accuracy class | 0.5%F.S. |
| 額定輸出Rated output | 1.8±0.2mV/V |
| 零點輸出Zero balance | ±0.1 mV/V |
| 非線性Non-linearity | ±0.5%F.S. |
| 滯后Hysteresis | ±0.5%F.S. |
| 重復性Repeatability | ±0.2%F.S. |
| 零點溫度漂移Temp.effect on zero | ±0.2%F.S./10°C |
| 輸入電阻Input impedance | 406±10Ω |
| 輸出電阻Output impedance350 | 350±5Ω |
| 絕緣電阻Insulation | ≥5000MΩ(50VDC) |
| 使用電壓Recommended excitation | 5~12VDC |
| 最大使用電壓Maximum excitation | 15VDC |
| 溫度補償范圍Compensated temp. range | -10~40°C |
| 工作溫度范圍Operation temp. range | -20~60°C |
過載停止Overload stop | 105%~200%F.S. |
| 極限過載Ultimate overload | 500%F.S. |
| 電纜線尺寸Cable size | Φ3x2m |
最大軸長Max. axis size | 400mm |
防護等級Portection class | IP65 |
